SIMPLE ROLL
Overview
Excellent characteristics of the simple roll
- Self weight type
- Lowest cost and most economical prices
- Simple repair and maintenance
It is easy to perform maintenance and management, even in the case of a vehicle, etc., collision. in general cases, simply replace the curtain reinforcement pipes to resolve the issue. Even if there is no spare reinforcement pipe, you can replace it with a water pipe with the same diameter. Even when the curtain is damaged, you can easily repair it with repair tape. Of course, when the restoration work is finished, you can open and close at the original speed.
Specifications
Frame
- AL6063
Wind Bar
- High strength AL dual extrusion bar formed to provide robustness against wind and support one level separation in case of collision.
Guide rail
- AL dual compression forming to provide beautiful looks and prevent corrosions or pollutions
Curtains
- Industrial membrane sheet(non flammable) with thickness of 0.9mm
Motor
- 220V/3 phase, inverter driven to adjust the speed, brake for continuous use attached.
Control board
- Conforms to the CE standard, made of metal box, left/right dimension (dim. 300 × 400 ×150) IP 65
Safety sensor
- Composed of top/bottom sets.
Mechanical characteristics
- Speed
- 2.5m/sec
- Wind resistance
- 20m/sec

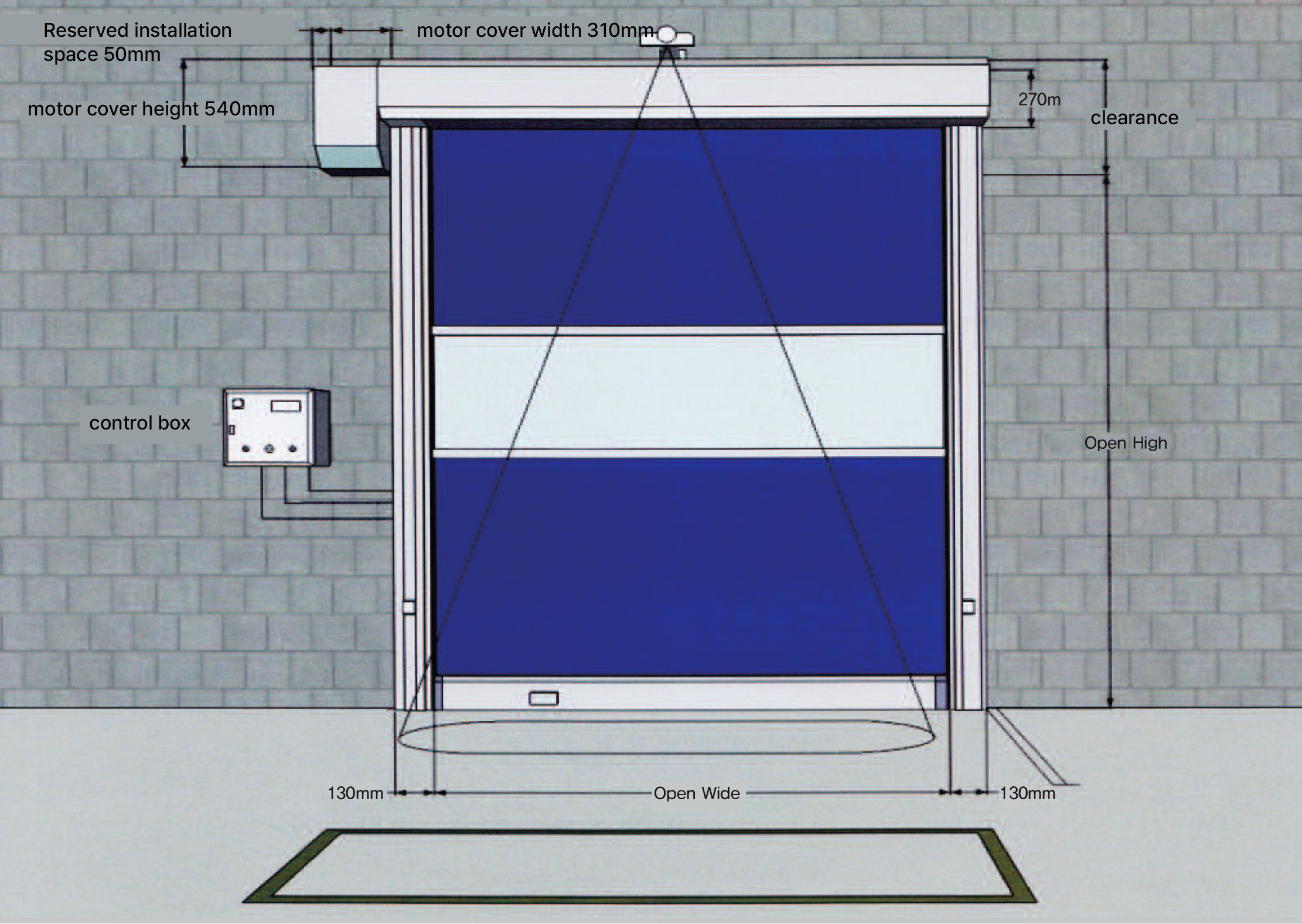

Drawings
Maintenance, management and installation
- Can effectively prevent flying dusts and insects and it is the first choice for the clean work shop.
- Easy maintenance and management
- Damaged curtain can be easily repaired with repair tape.

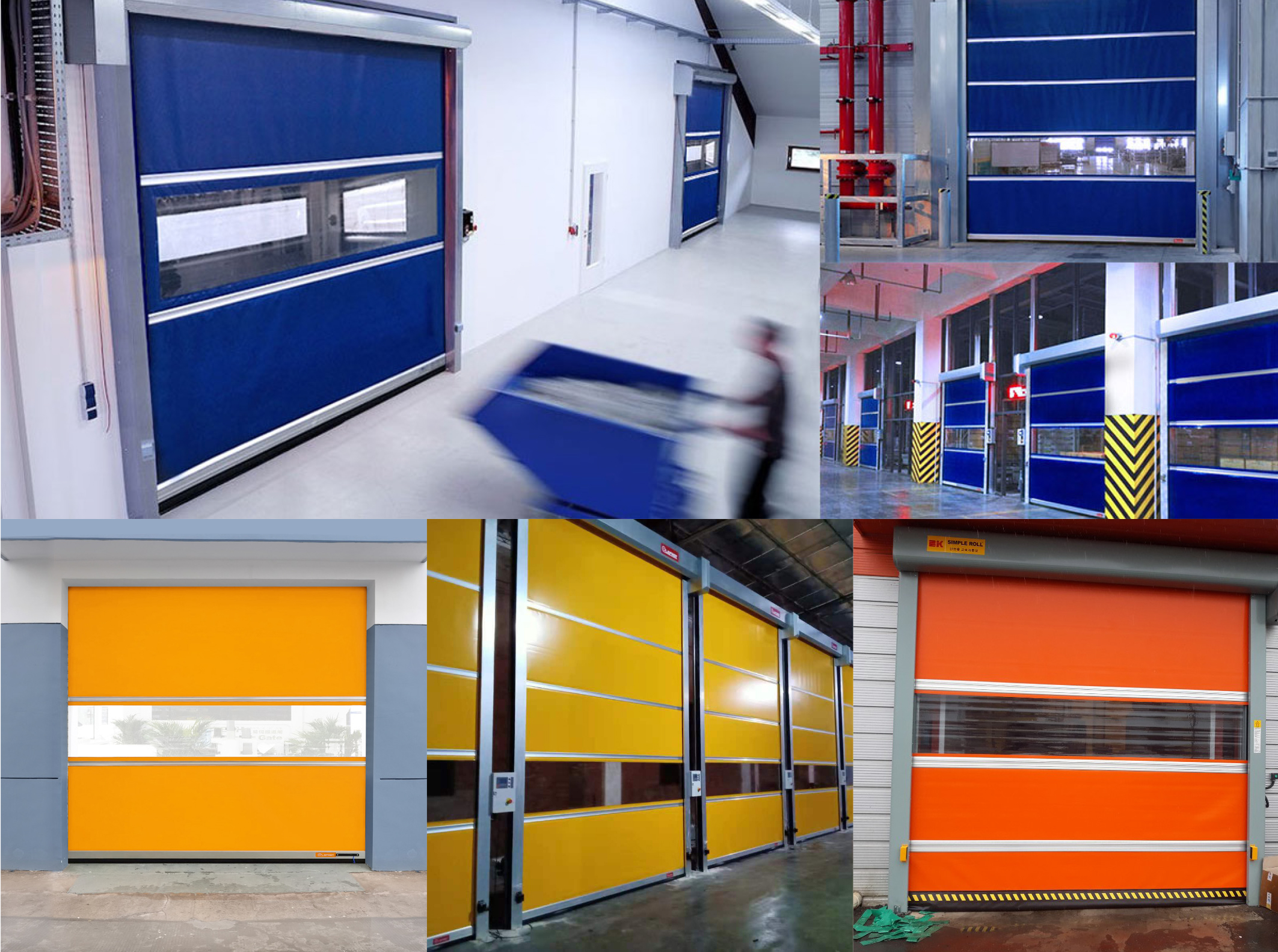

Installation location
- Suitable for food, pharmaceutical, electronics, automobile, logistics, machine and other industries.
- Soft and high speed opening and closing, energy saving, environmental protection, insect control, vibration proofing can be facilitated.
- Easy replacement and cleaning
Options
- Manual button control, radar control, loop coil, pull switch, remote controller
