FOLDWAY
개요
- Foldway is an ideal door that can be easily opened even in case of large size.
- The door is lifted with a strong and sturdy belt. Its self-supporting structure allows it to be installed in various applications.
- Since the strong pipe is mounted in the curtain, it is an ideal door that can be installed in areas exposed to winds or large size cases
Tech specs
- Max size
- 20,000mm × 15,000
- opening speed
- ~1m/sec
- closing speedclosing speed
- ~1m/sec
- Curtain
- 0.9mm industrial membrane sheet(non flammable)

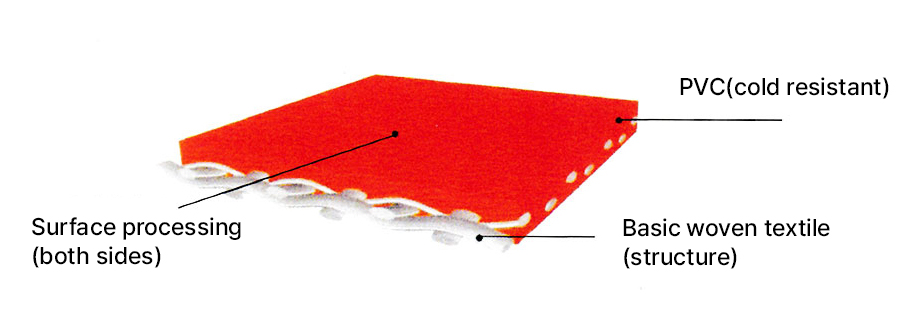

Tech specs of curtains
Coating type and finishing
- Coating material
- PVC (cold resistant)
- Curtain coating
- double sided calendar, extrusion type
- Weight
- 900/1,300 (g/㎡) DIN EN ISO 2286-2
- tensile strength
- 4,300/4,000(N/50㎜) DIN EN ISO 1421/V1
- tear strength
- 500/500(N) DIN 53363
- adhesion force
- 20(N/㎝) LB 3.04-1
- Low temperature resistance
- -40℃ DIN EN 1876-1
- high temperature resistance
- +80℃ LB 3.15
- Light fastness
- > 6 weeks, grade DIN EN ISO 105 B02
- Curvature
- no folding or overlapping lines 100,000 × @ DIN 53359 A
Woven textile
- texture
- DIN ISO 2,076
- Single fabriccounts
- 1,100 DTEX (fabric thickness unit) DIN ISO 2,066
- Weaving method
- P 2/2
- Note
- Identical to DIN EN 12641-2.
Color chart for fabric thickness 0.9 mm / 900 gr / ㎡
- RAL 1003 SIMIL
- RAL 2004 SIMIL
- RAL 3002 SIMIL
- RAL 5002 SIMIL
Frame standard color chart
- RAL 9010
- RAL 3000
- RAL 5010
- RAL 6005
- RAL 7037

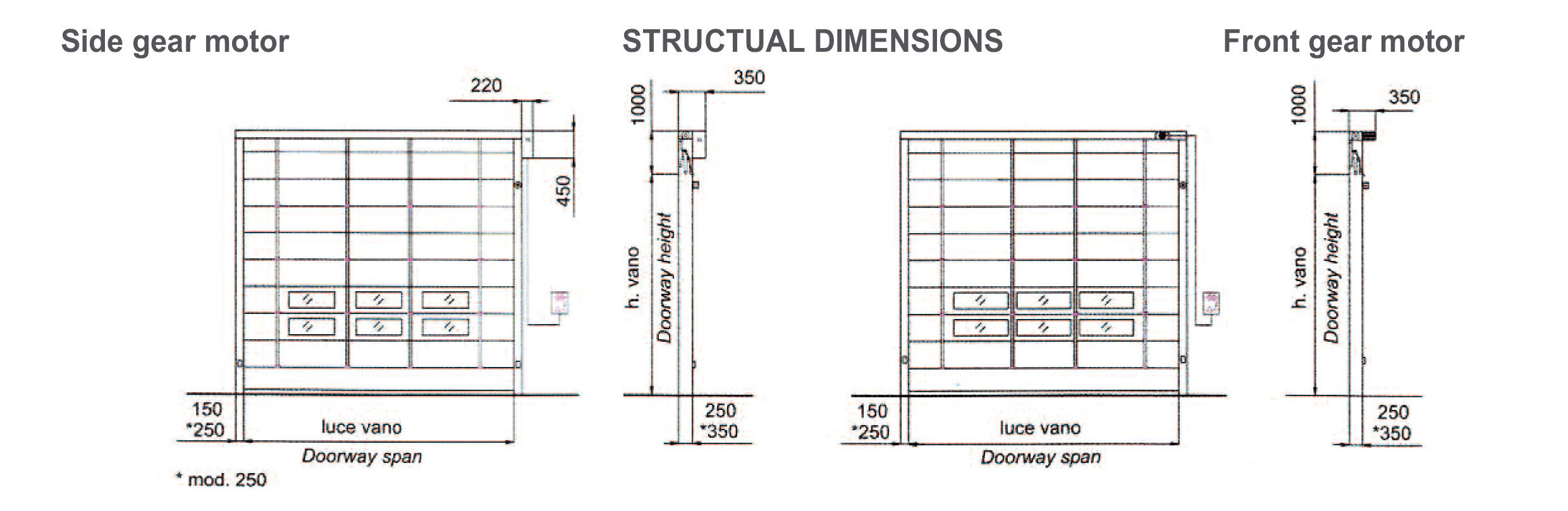

Drawings
Operation processes

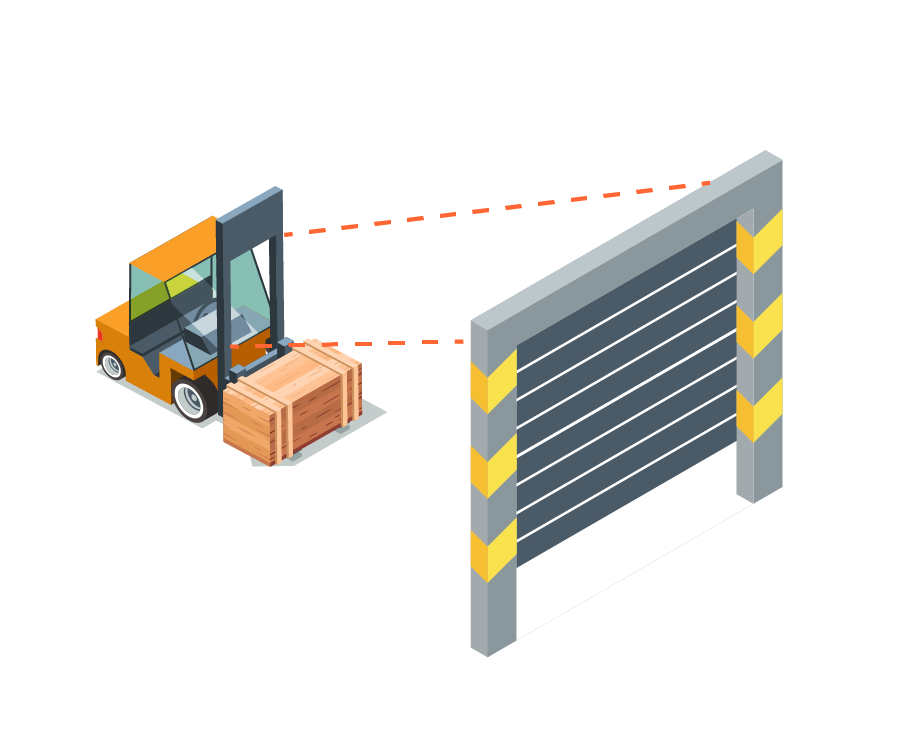

01Operation detection

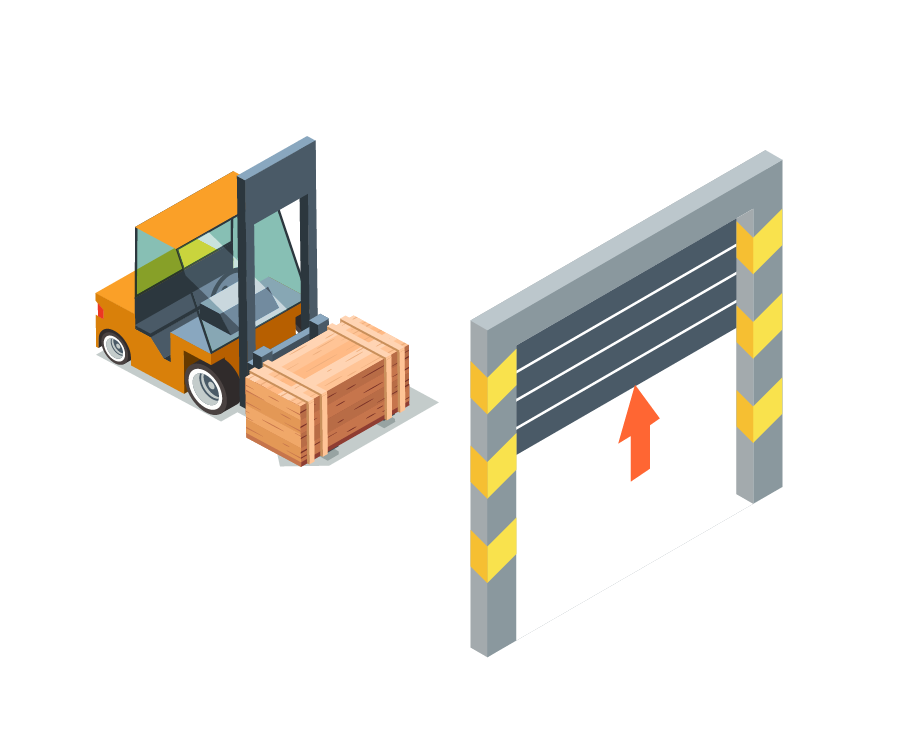

02Rising door

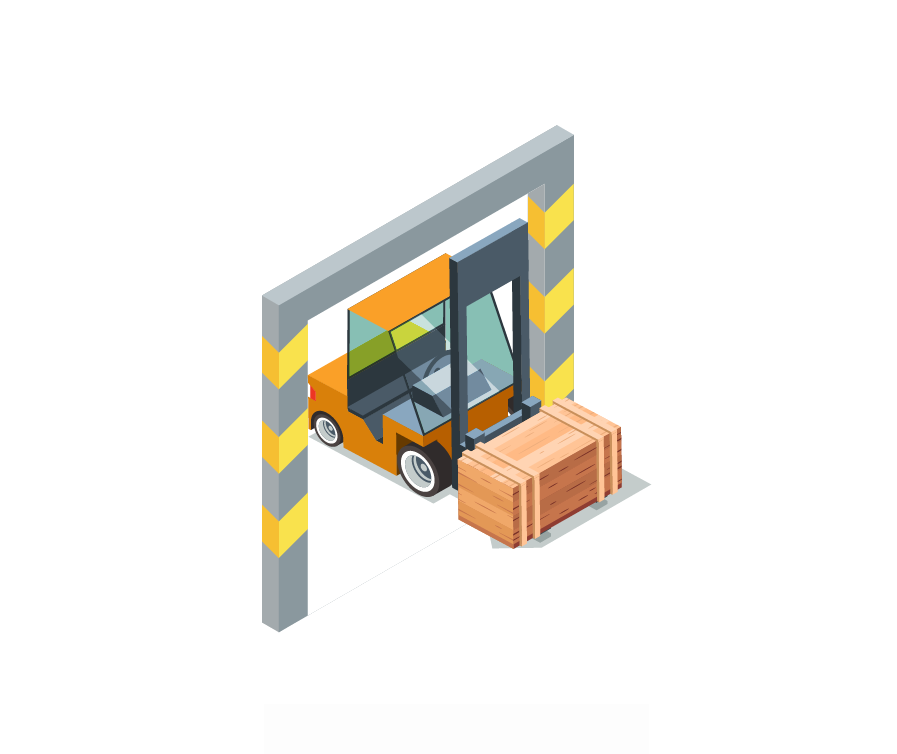

03Opening door

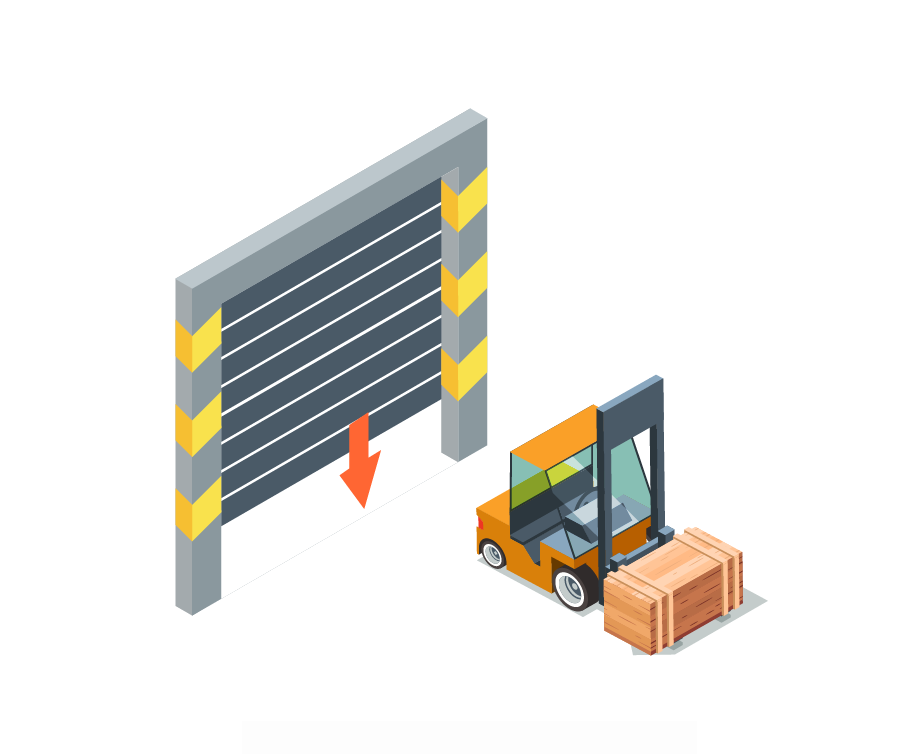

04Closing after entering
