Outlines
- Reduces heating costs by 45%
- Reduces cooling costs by 30%
- Maximizes the efficiency of HVAC systems
- Reduces accidents during work
- Improve employee productivity
- Reduces humidity
Features
Even when overlooking all the benefits of fans in improving ventilation, their low operating costs make them worth the investment.
A single fan can be driven by a low output 1/2 to 2 horsepower motor, a fraction of the power consumed by dozens of small fans needed to replace one albatross fan due to the size and modern design of albatross fans.
Large industrial ceiling fans are available at a fraction of the cost of installing and operating a commercial air conditioning system while operating as efficiently as possible. In addition to incredible energy savings, albatross fans are quieter than many other cooling solutions, such as traditional ceiling fans and HVAC systems, making them ideal for industrial as well as commercial spaces.
Functions
One industrial fan can cover an area of approximately 2020 ㎡ in an open space. Compared to small fans, a large industrial fan with a diameter of 7.4 m has roughly the same area as 50 small fans of 0.75 m. For example, an 8100 m2 factory would require approximately 300 small fans and only four sets of BMP industrial large fans to achieve full-fan coverage. Industrial fans used with air conditioners save more than 30% of energy.

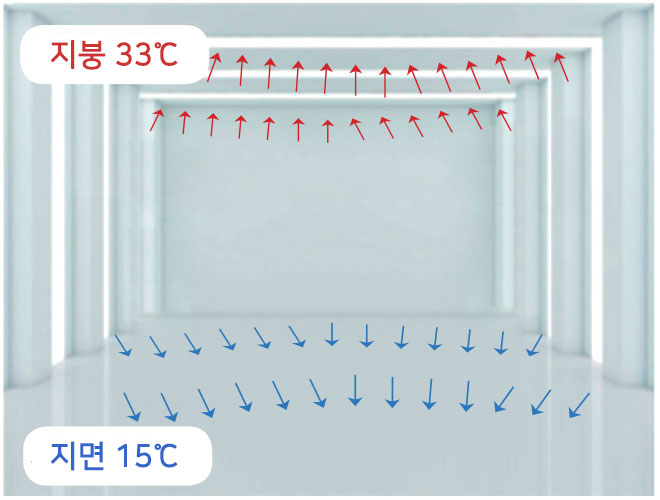

Failure to install large energy-saving fans will result in wasting the budget as the air temperature will not be balanced. Warm air builds up on the ceiling, and cold air on the floor. This situation reduces the efficiency of an air conditioning system and increases heat consumption.

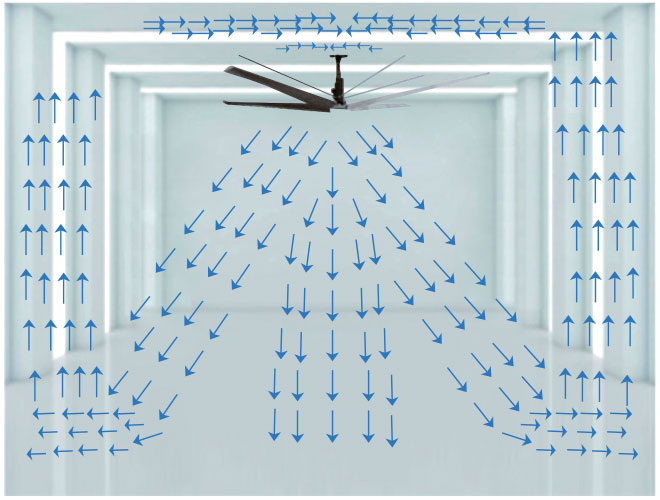

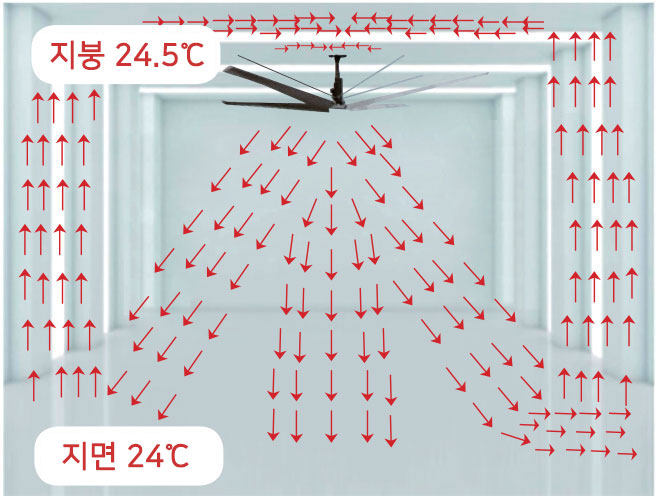

In the same space during summer, you can operate the big energy saving fan to circulate air flows. You can reduce the indoor temperature by more than 4 degrees and the power consumption by 20%.
Specifications
| Wind speed (m/s) | 7440mm | 6150mm | 4980mm | |||
|---|---|---|---|---|---|---|
| / maximum speed | half speed | / maximum speed | half speed | / maximum speed | half speed | |
| Zone 1 | 3 | 1.2 | 2.55 | 1.25 | 2.64 | 1.39 |
| Zone 1 | 2 | 0.8 | 1.52 | 0.76 | 1.79 | 0.79 |
| Zone 1 | 1.2 | 0.6 | 1.21 | 0.63 | 1.21 | 0.49 |
| Zone 1 | 1 | 0.3 | 0.94 | 0.36 | 0.94 | 0.27 |
| Air volume atthemaximum speed (m3/h) | 713,000 | 535,000 | 382,000 | |||
| Fan blade diameter | / Blade length | Rotation speed (counts/min) | / Output (kw/h) | Voltage | Air volume(m3/h) |
|---|---|---|---|---|---|
| 7440mm | 3350mm | 24-64 | 1.5 | 단상 220V | 713,000 |
| 6150mm | 2765mm | 24-64 | 1.5 | 단상 220V | 535,200 |
| 4980mm | 2180mm | 24-64 | 1.5 | 단상 220V | 382,000 |

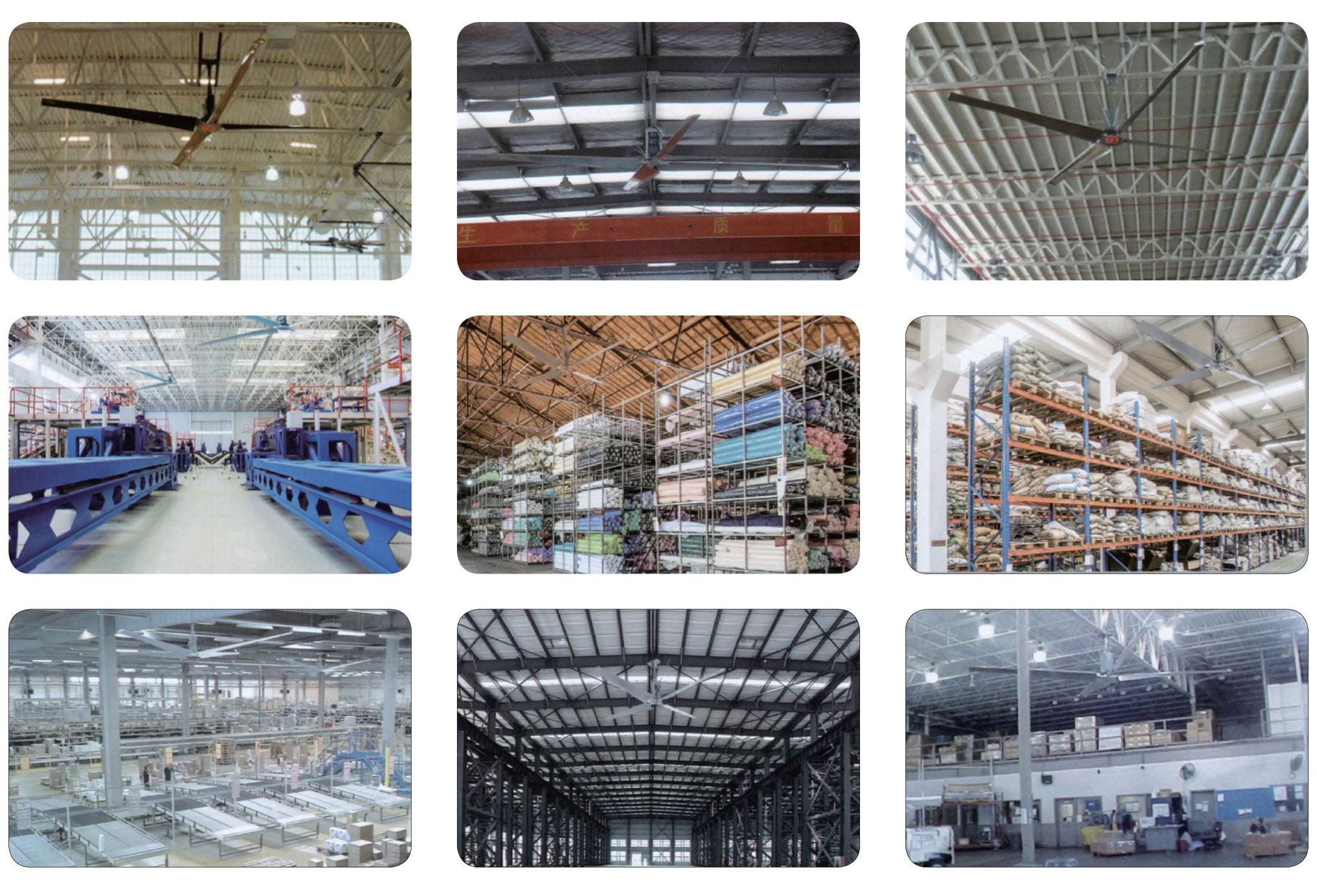

Installations
