ROLLDYNA
개요

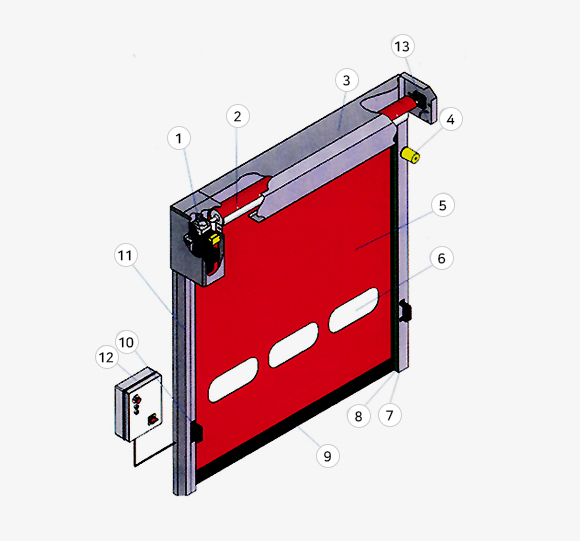

Main part namesKEY
- 1. Side gearmotor
- 2. Roller
- 3. Horizontal frame casing
- 4. Flashing light
- 5. Curtain
- 6. Window
- 7. Sliding guide
- 8. Cogged curtain side edge
- 9. Ballasted bottom dege
- 10. Lower photocell set
- 11. Column frame and casing
- 12. Control board
- 13. Upper photocell set
Specs
Coating type and finishing
- Coating material
- PVC(cold resistant)
- Curtain coating
- double sided calendar
- Weight
- 900/1,300 (g/㎡) DIN EN ISO 2286-2
- tensile strength
- 4,300/4,000(N/50㎜) DIN EN ISO 1421/V1
- tear strength
- 500/500(N) DIN 53363
- adhesion force
- 20(N/㎝) LB 3.04-1
- Low temperature resistance
- -40℃ DIN EN 1876-1
- high temperature resistance
- +80℃ LB 3.15
- Light fastness
- > 6 weeks, grade DIN EN ISO 105 B02
- Curvature
- no folding or overlapping lines 100,000 × @ DIN 53359 A
Woven textile Base fabric
- texture
- DIN ISO 2,076
- Single fabriccounts
- 1,100 DTEX (fabric thickness unit) DIN ISO 2,066
- Weaving method
- P 2/2
- Note
- Note/ Identical to DIN EN 12641-2.
Color chart for fabric thickness 0.9 mm / 900 gr / ㎡
- RAL 1003 SIMIL
- RAL 2004 SIMIL
- RAL 3002 SIMIL
- RAL 5002 SIMIL
Frame standard color chart
- RAL 9010
- RAL 3000
- RAL 5010
- RAL 6005
- RAL 7037
Characteristics
- High speed opening/closing. (2.5m/sec)
- Excellent airtightness(100%)
- Very clean. (Static electricity prevention and anti pollution)
- Easy maintenance and management
- Excellent safety
- Wind resistance of 30m/sec

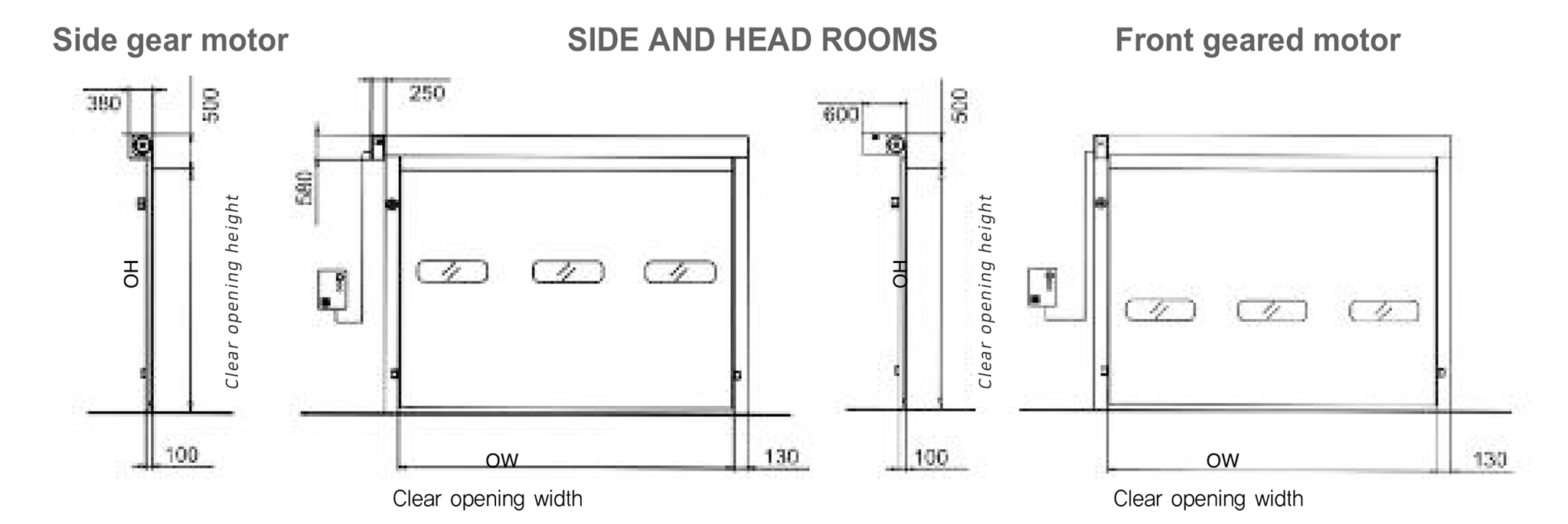

Drawings
