MEGA DOOR
개요
- Mega door offers stable and reliable performance.
- Germany’s power system and tech partnership guarantee reliability and help you reducing the maintenance and repair costs.
Specs
Product specs
- Max size
- width of 50m x height of 30m
- Average opening closing speed
- 6-9m/min
- max wind resistance
- 30 m/sec
- Power supply
- 380V 60Hz
- control voltage
- 24V
- Curtain structure
- double curtain
Curtain specs
- thickness
- 1.2mm
- Tensile strength
- Length 4365.9 / Width 3033.8
- Tear strength
- Length 570.9 / Width 329.9
Standard color
- Grey
- orange
- blue
Characteristics
- If the curtain is damaged, you can repair each of them separately.
- Due to dual curtain system, you can withstand strong winds.
- On the side frame, there are safeguards installed to guarantee safety.
Safeguard
- If the lifting wire is cut, then safeguard operates to make sure the main body of door is automatically locked in the orbit, the system power is turned off.
- In case of defects, lamp and buzzer sound go off to make sure no one enters.
- Safety protection area setting
In case of defects, safeguard will operate at the height of 2.8m from the ground.
You cannot forcefully descend at 2.8 meter from the ground. - If there is an obstacle below the door, it is automatically stopped.

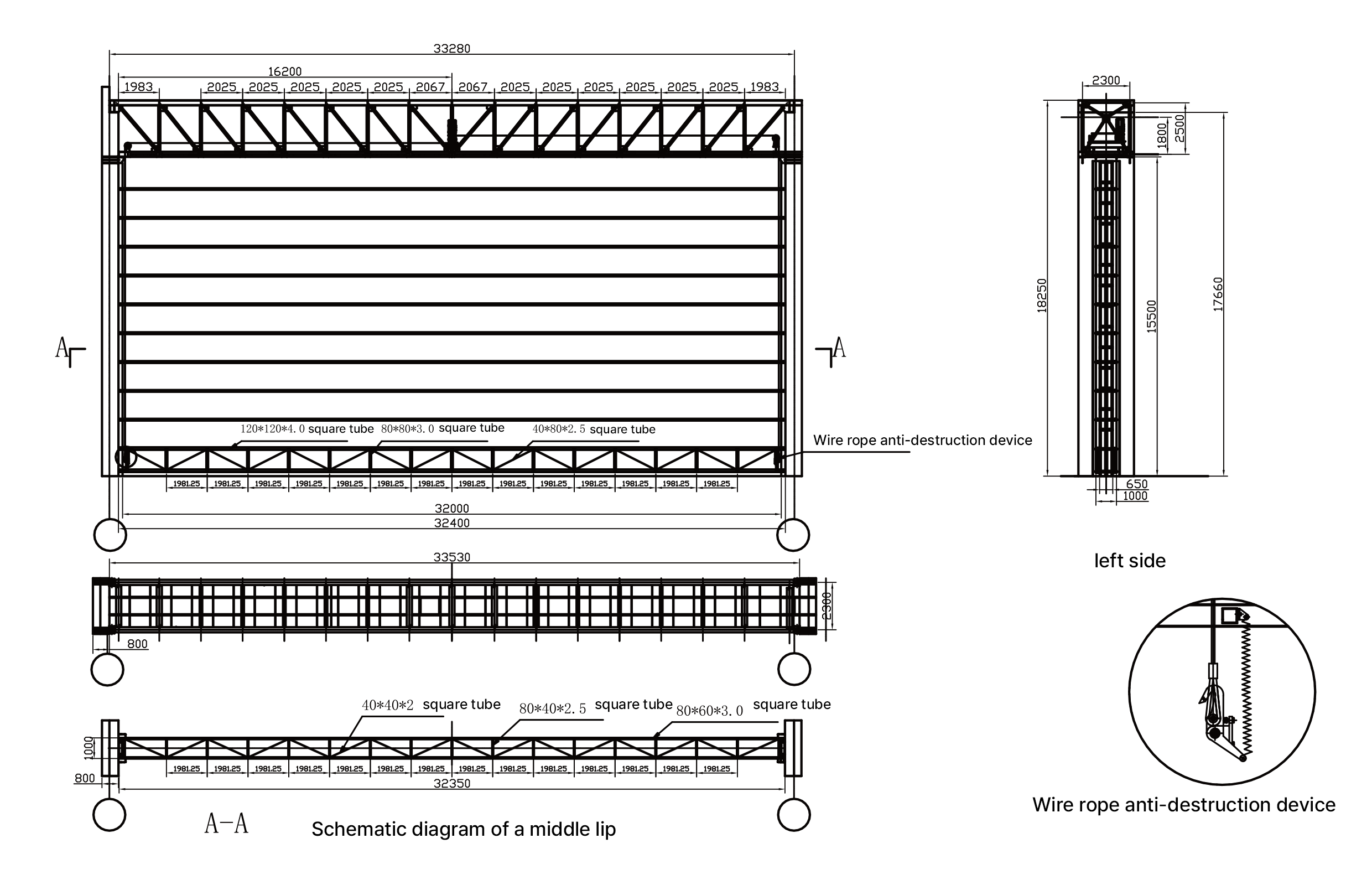

Drawings
- 1. Double truss layer hanger door curtain
- Lip thickness of 1000mm, 11 EA
- 2. Motor
- 15Kw (Germany SEW)
- 3. Opening speed
- 6-9m/sec
- 4. Curtain weight
- 11,000kg/full weight 13,000kg(cover plate, etc included)
- 5. Opening height
- 13,200mm
- 6. Wire rope
- ∅21.7, High strength wire-1870mpa
