M-Type
Overview
Features
- Easy to install anytime, anywhere.
- Nylon material; excellent heat resistance and load resistance.
- The operating temperature range of ~20℃~90℃ and the instantaneous maximum temperature of 140℃.
- Convenient installation, assembled in series when installed.
- Reduces construction time by 40%
Specification
ONE TOUCH PIPE CLAMP

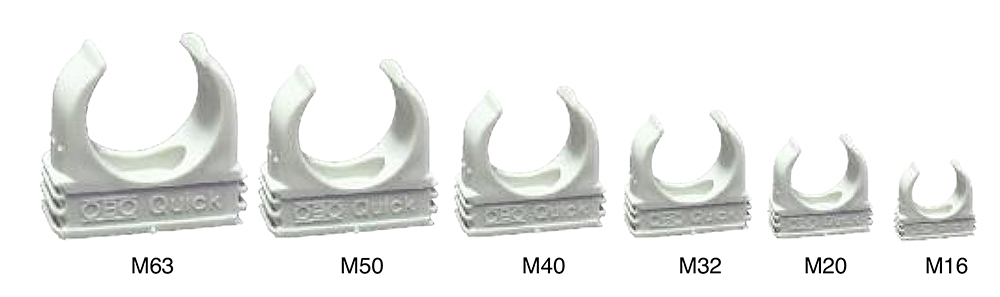

| TYPE | Φ in mm |
|---|---|
| M-16 | 15.0 - 17.5 |
| M-20 | 19.0 - 22.0 |
| M-25 | 24.0 - 27.5 |
| M-32 | 31.0 - 35.5 |
| M-40 | 38.0 - 44.5 |
| M-50 | 47.0 - 53.5 |
| M-63 | 59.0 - 65.0 |
Usage
- Conduit, copper pipe
- X-L pipe
- Stainless steel pipe
- Drinking water pipes
- P-B pipe
