ROLLWAY
Overview
No need to stop operation.Simple repair even for unexpected accidents
Energy saving, AC efficiency,
work efficiency greatly improved. No worry for emergency, Easymaintenance and management
Specifications
| Classification | details |
|---|---|
| Format | RW - 8Etype |
| Opening | 1m/sec |
| Motor | Brake attached geared motor (0.2 KW ~ 2.2KW) |
| Power supply voltage | 3 phase AC 220 Volts |
| Opening width | 1.3 M ~ 13.0 M |
| opening height | 1.6 M ~ 8 M |
| Control switch | auto opening and closing curtain stop position control, switch(opening height of 3.3 m or higher) |
| Obstacle detection | electrical light switch, 2 EA |
| Control box | Column direction steel box changeable, length 650 mm, width 170mm, full length172 mm |
| Curtain |
Standard 4 colors
grey
orange
blue
ivory
|
| Special specs |
Aluminum Compression
Net
Transparent
Non Flammable
|
| Side frame |
grey
ivory
|
- ※ Sample color somewhat differ from the actual color.
- ※ It is subject to change without notice for improvement, please, understand it.
Features
High speed opening/closing of 1M/sec
- Can open and close at high speed of 1M/sec, thus it can be opened and closed without interfering with passing vehicles at anytime.
High wind resistance
- Rollway’s wind resistance is 20M/sec. superior to any other products.
Opening and closing height that can be free set
- Height of opening/closing can be set freely depending on the working status.
- When a large vehicle and etc approaches, you can use the manual switch to open it to the max opening height.
Unique rolling up type
- Rollway adopts its own unique opening and closing method without combining curtains and belts. It does not overload driving units or curtains or so on.
- It can guarantee safe opening and closing in any conditions.
Ultra large size of opening width of more than 13 m
- Rollway’s unique rolling up type enables manufacturing of large sized machines that is not possible with other models.
- From small to ultra large size with opening width of more than 13 meters, Rollway’s stable performance is proven everywhere.
Simple maintenance and management
- Simple maintenance and management
- Even if the vehicle and etc collides, in general cases, simply replace the curtain reinforcement pipes to resolve the issue.
- Even if there is no spare reinforcement pipe, you can replace it with a water pipe
- with the same diameter. Even when the curtain is damaged, you can easily repair it with repair tape.
- Of course, when the restoration work is finished, you can open and close at the original speed.
Firm design and short construction periods
- Rollway can be designed and customized for the installation location by the custom order manufacturing system, and skilled workers are hired to assemble and install it accurately in a short period of time.
- Firm rollway installed at surprisingly high speed, users want this product for this reason.
Strictly selected material with high durability
- Rollway strictly selects curtain materials as well as frames.
- For standard curtain materials, we use poly chloride vinyl coated non flammable polyester and internally, during a life test, we performed more than 1 million times of opening and closing operation.
- In addition, you can select one of the four standard colors.
Considerations for safety
- Due to proper use of detectors, when an obstacle enters the downward lines of the curtain, or if a device exists that way, the sensor will operate for automatic operation stopping or ascending in reversion.
Various options
- Opening and closing of the curtain can be automatically operated by various sensors apart from general operation meth- Select an adequate auto opening/closing system for sensors suitable for your working environment.
- For a curtain option, there are various materials depending on the purpose of use, aluminum compression, non flammability, air permeable net, transparent and etc.
- One of our merit is to be able to respond to varying temperatures.
- Please, submit your inquiry about high/low temperature specs.
- Can install light windows to make the working environment brigher.

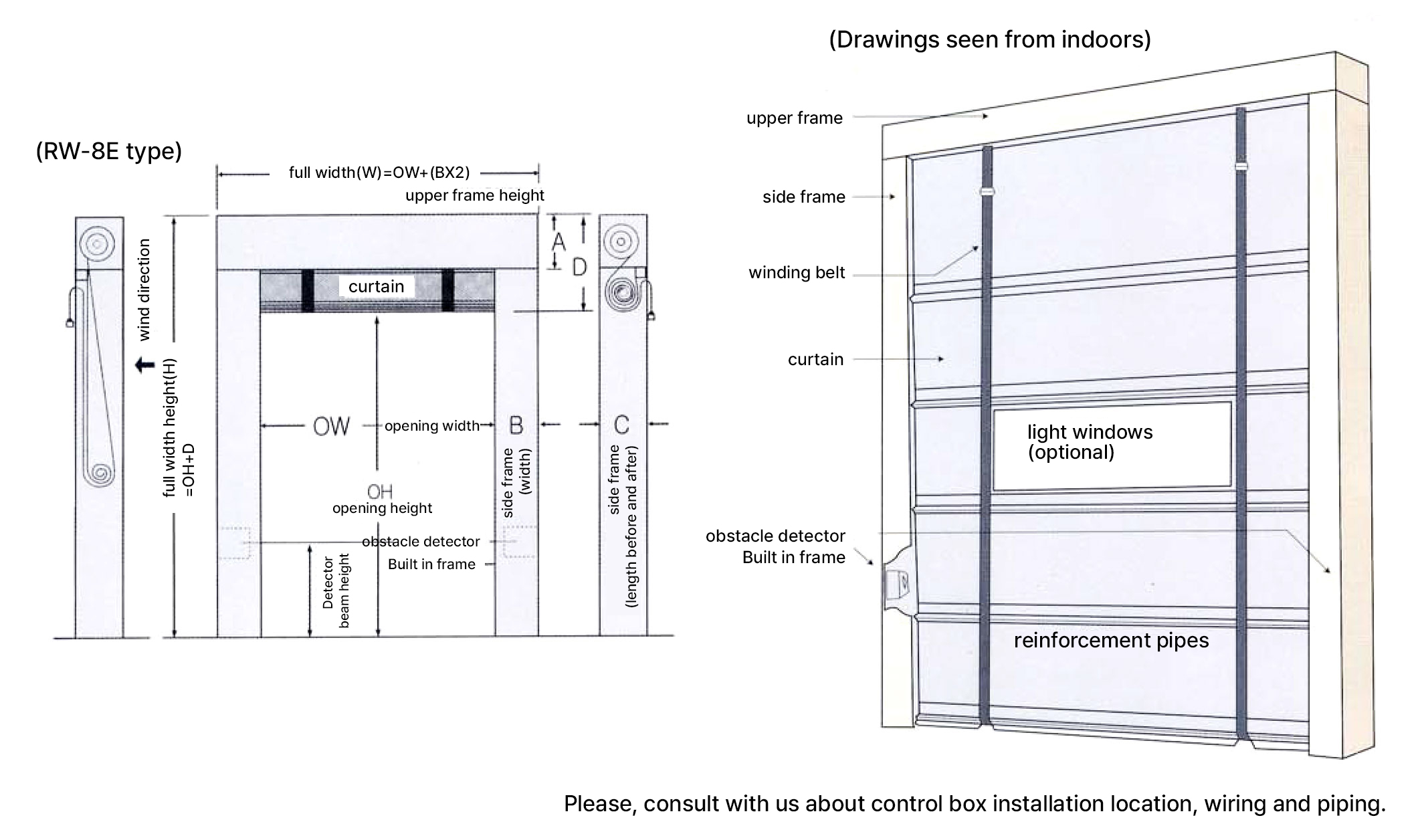

Drawings
Maintenance and repair
Simple maintenance and management
- Rollway adopts its own unique opening and closing methods, thus enabling simple.
- maintenance and management. There is nothing to really worry about other than routine pre work inspection.
Speedy recovery in case of emergency
- Even if a vehicle and etc collides with the BMP rollway, in general cases, only the curtain reinforcement pipe is bent, thus you just have to replace the pipe to ensure normal operation.
- If there is no spare pipe, you can just replace it with a water pipe with the same diameter for emergency handling.
Manual opening/closing in case of blackout
- No panic even in case of blackout. Curtain can be easily rolled up manually.
Simple curtain replacement
- Curtain and belt have no mechanical defects. Thus, high speed opening/closing does not overload the curtain at all.
- If the curtain is damaged, use repair tape to repair it, thus there is no need to interrupt operation for long time.
