SPIRAL DOOR
Overview
First Class in crime prevention, high speed, thermal insulation, and fine dust blocking!
BMP_SPIRAL DOOR Operation Video(Automatic)
BMP_SPIRAL DOOR Operation Video(Manual)
Specifications
Door SizeDoor Size
- maximum Width
- 4,500mm, 6,000mm, 8,000mm, 9,0000mm
- maximum High
- 6,000mm, 7,000mm, 8,000mm, 9,0000mm
SpeedSpeed
- Open Speed
- 1.2m/sec ~ 2.5m/sec
- Close Speed
- 0.6m/sec ~ 1.2m/sec
Door PanelDoor Panel
- Thickness
- 43mm, 80mm
- Material
- Dual aluminum alloy sections filled with rigid PU foam
Motor PowerMotor Power
- Three-phase, 220V, 60Hz
Control SystemControl System
- Faults can be read from the section automatically after manually opening the servo control system, fuses, and safety wires and releasing them for three-phase power protection.
OptionOption
- Transparent window, radar sensor, loop coil, remote control, pull S/W
Features
- Contactless Spiral
- The double-helix roll-up guide is designed for high-speed operation and precise movement. No wear and tear.
- Variable Spline Shaft
- Studied in the automotive field and excellent for maintenance and noise absorption
- Door Panel
- High thermal insulation by double aluminum alloy sessions filled with rigid PU foam
- Hinges
- Highly wear-resistant and good sound absorption
- Hinge wheels
- Made from high-strength MC nylon to reduce friction
- Locational Parts
- Four MC nylon wheels for precise operation of the door on the spiral rail

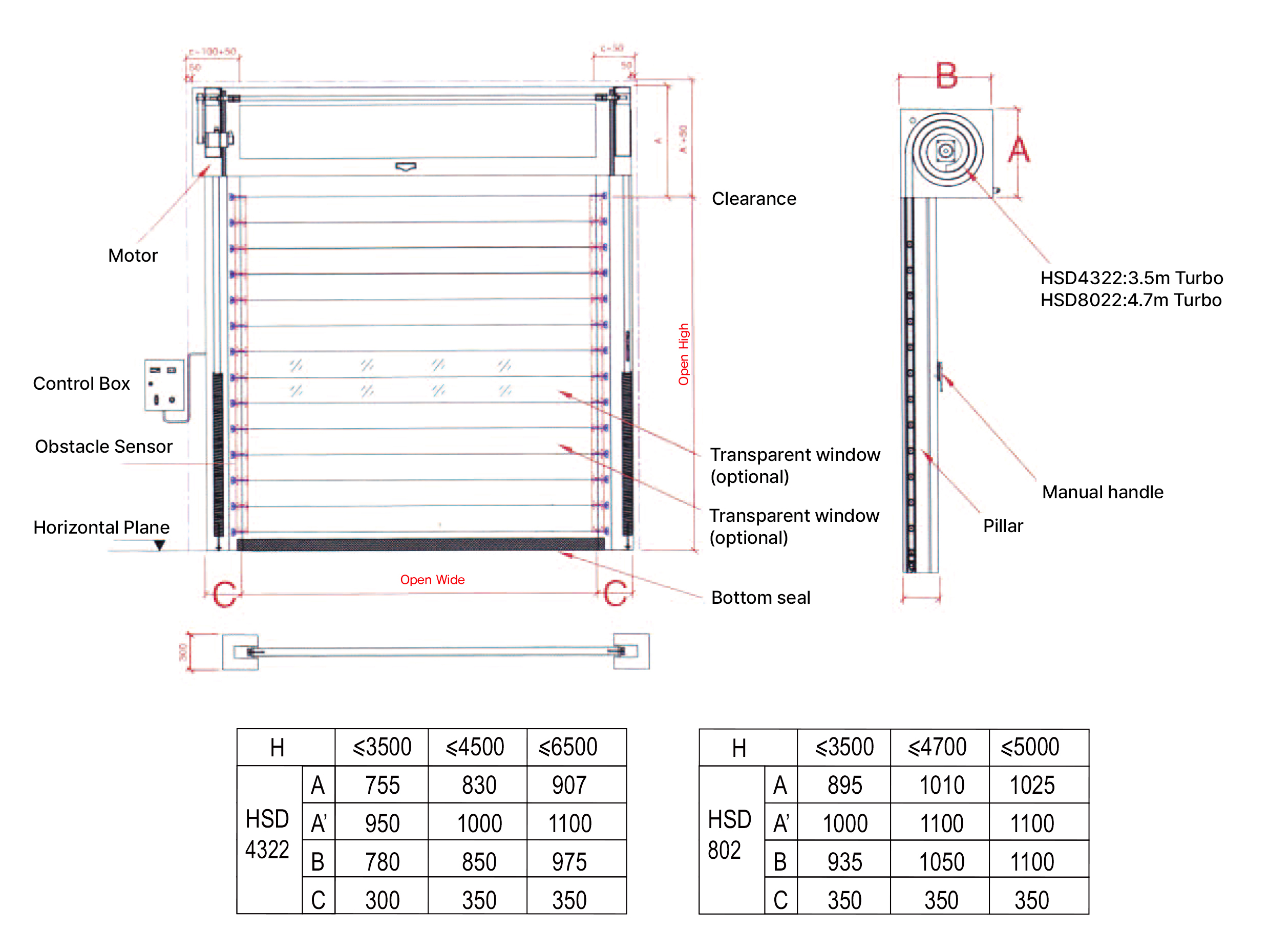

Drawings
Types

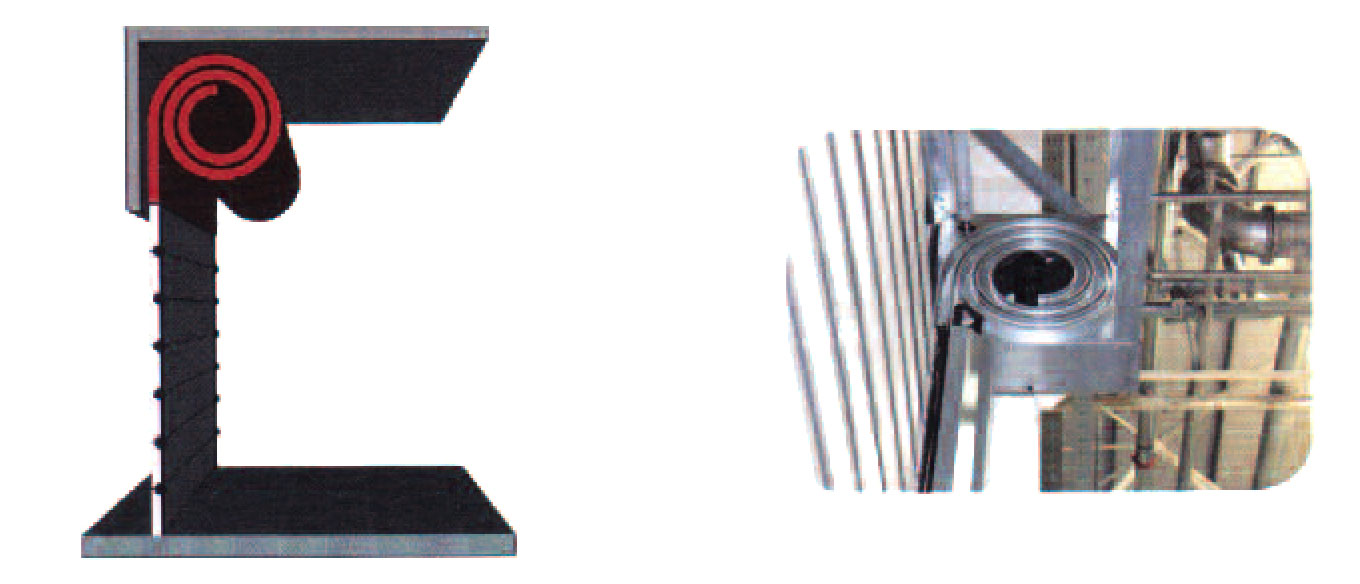

- Turbo Lifting
- Standard design suitable with a sufficient headspace

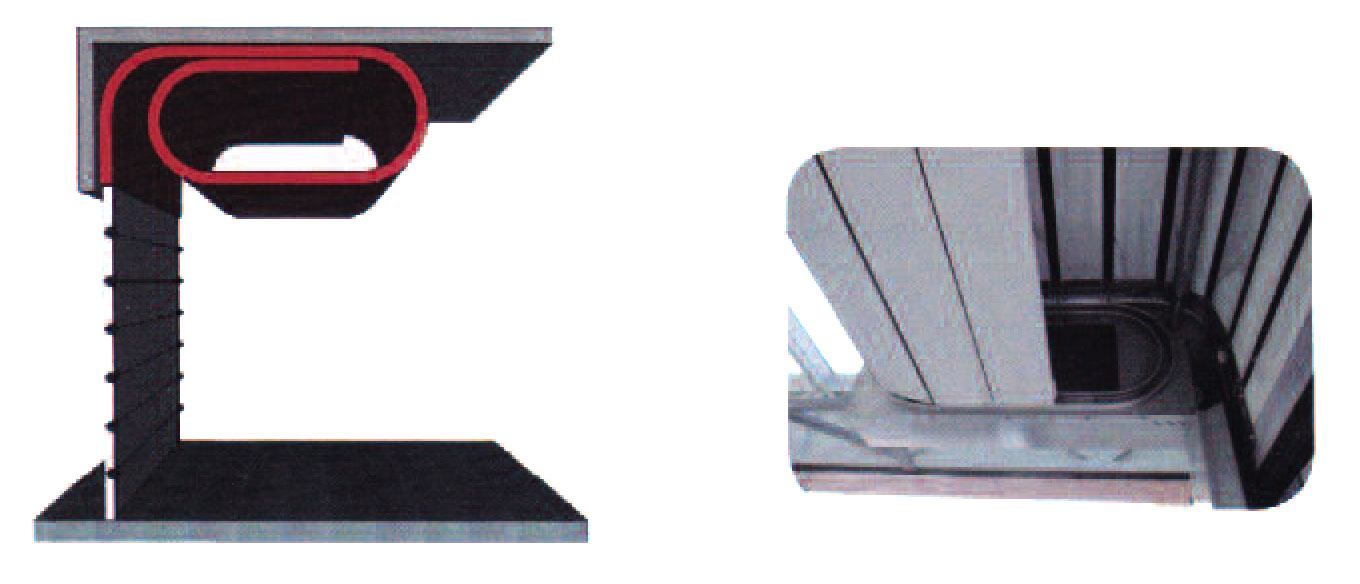

- Elliptical Lifting
- Considered when headspace is limited
